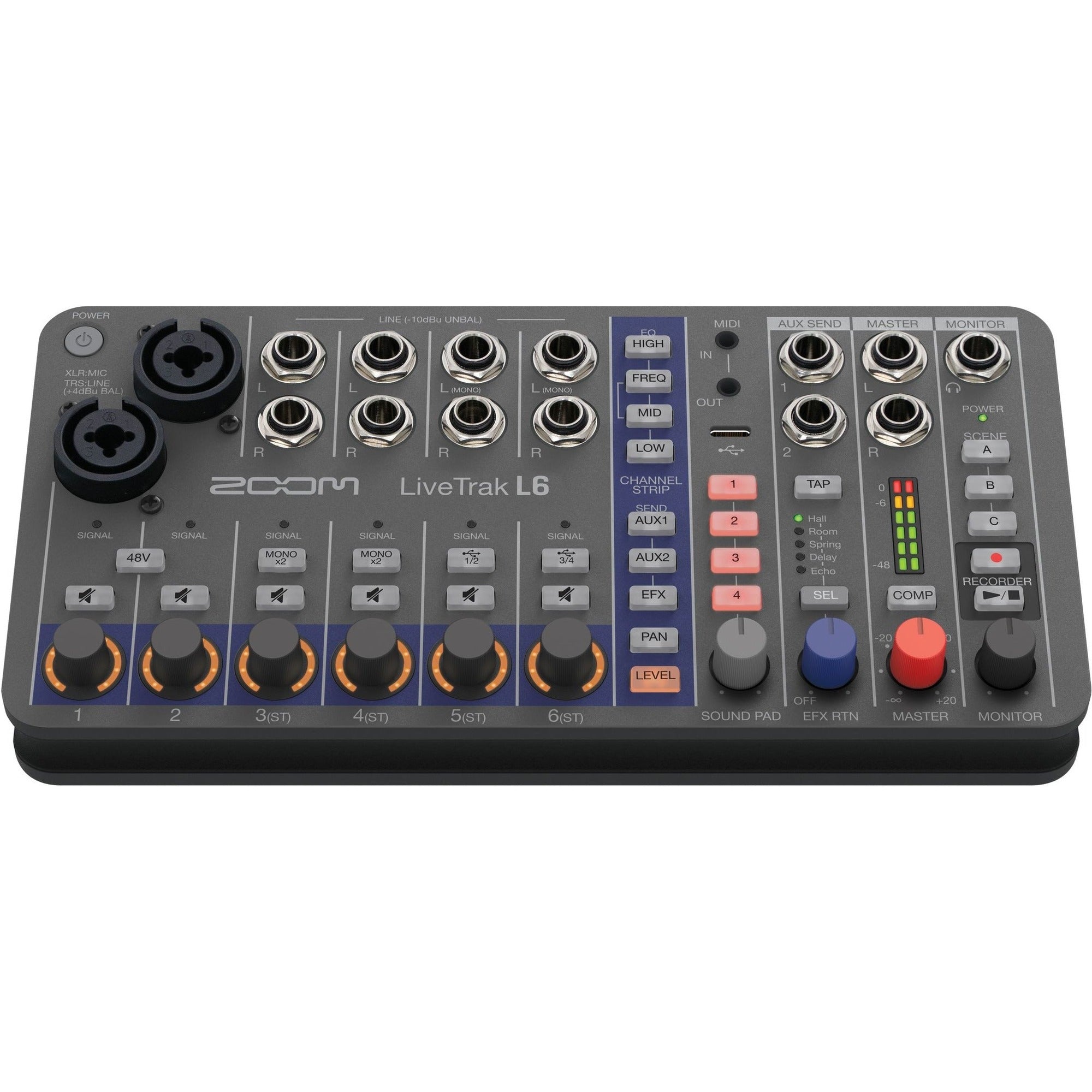

Zoom LiveTrak L-6 – Compact 10-Channel Portable Mixer & 12-Track Recorder

The Zoom LiveTrak L-6 serves as a powerful hub for live streaming, band rehearsals, mobile studios, and synth setups. It combines a tactile mixer surface with 32-bit float recording, performance pads, scene memory, MIDI control, and battery-powered portability—perfect for creators who need flexibility and pro-level sound on the go.

Key Features

• 10-channel ultra-compact mixer: Two XLR/TRS combo inputs (mic/line), plus four stereo ¼″ inputs—each with pan, aux sends, and 3-band EQ with adjustable mid.
• 12-track simultaneous recording: Capture six discrete channels plus stereo mix directly to micro-SD card (up to 2 TB capacity).
• 32-bit float audio: Built-in dual A/D converters on inputs 1 and 2 ensure clipping-free recording and vast dynamic range.
• Onboard effects and pads: Includes five send effects, two aux sends, and four assignable sound pads for backing tracks or live samples.
• Scene memory: Store and recall up to three mixer setups with levels, EQ, effects, and tempo instantly.
• MIDI & audio interface: MIDI In/Out and USB-C connectivity allow remote control, DAW interaction, and 12-in/4-out audio interface operation.
• Portable power options: Runs on four AA batteries (up to 3 h), USB bus power, or optional USB power bank—ideal for location or mobile use.

Customer Benefits

The LiveTrak L-6 simplifies recording and mixing in tight spaces, whether on stage, in a studio, or in a remote location. Its intuitive panel with knobs and pads gives you hands-on control, while 32-bit float recording removes gain dilemmas. Store custom setups for fast recall and stream or record multitrack to expand your creativity.

Quick Specs

• Analog inputs: 2× XLR/TRS mic-line, 4× ¼″ stereo pair inputs
• Outputs: 2× aux sends, main stereo, headphone monitor
• Recording: 12-track simultaneous to micro-SD (up to 2 TB)
• Effects: 5 onboard send effects (reverb, delay, echo, etc.)
• EQ: 3-band per channel with sweepable mid
• MIDI I/O: 3.5 mm MIDI In/Out plus USB-MIDI over USB-C
• Audio interface: 12-in/4-out via USB-C, compatible with iOS/Android and desktop
• Power: USB or 4 x AA batteries (≈3 h runtime)
• Dimensions (W × D × H): Approx. 22.3 cm × 11.2 cm × 4.6 cm (8.8″ × 4.5″ × 1.8″)
• Weight: ~770 g (1.7 lb)

What’s in the Box

• Zoom LiveTrak L-6 unit
• USB-C cable
• Power adapter
• Quick Start Guide and Warranty card

Pros & Cons

✅ Pros:

• Robust 32-bit float for clipping-free tracking
• Portable yet complete mixer with effects, pads, scene memory
• Versatile: works as recorder, USB interface, or MIDI control surface
• Flexible power sources for mobile applications

⚠️ Cons:

• No faders—controls are rotary knobs, which may reduce immediacy for some users
• Small size and dense layout may require time to master under live pressure
• Sound pads lack visual feedback—rely on muscle memory during live use

The Zoom LiveTrak L-6 is a highly capable pocket-sized mixer/recorder that delivers full multitrack and live mixing power wherever creativity strikes. It’s perfect for on-the-go musicians, streamers, and sound explorers.
